What should I pay attention to when purchasing a spiral press dehydrator?

When purchasing, we need to understand the materials that need to be processed. Press machines with different fiber contents also vary. For example, for materials with high fiber content, such as ginger and sawdust, we need to choose a double screw press. When the fiber content is low, such as mulberry and apple, we need to choose a single screw press.

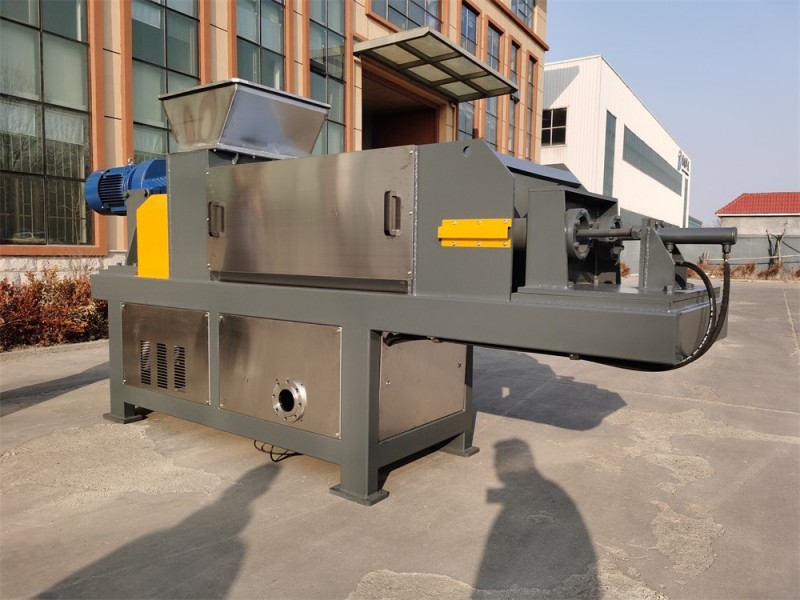

The screw press dehydrator mainly consists of a body frame, a guide rail frame, a press cage, a press hydraulic system, a mobile hydraulic system, and a lifting hydraulic system. The overall structure of the machine is reasonable and compact. The body is welded with a gantry structure, the guide rail frame is welded with I-beams, and the pressure cage is welded with a frame, which is sturdy and durable. The overall body is wrapped in stainless steel, with a beautiful and generous appearance.

Operation and use of screw press dehydrator:

1. Before starting, check if the transmission system is abnormal and if there is friction between the screw and the screen. If there is any abnormality, check the cause and make adjustments.

2. Turn the speed regulating knob, adjust the speed to the small position of * * *, and then start the extruder. After starting, adjust the speed of the extruder.

3. Feed can only be started normally.

4. After about 5 minutes of feeding, the water content in the discharge remains stable and normal.

5. During the work process, if it is found that the extruded material does not meet the process requirements, the speed control knob can be turned to adjust the speed to the ideal position.

6. When stopping the machine, first stop feeding, completely discharge the material outside the machine, open the cage cover, rinse the inside and outside of the machine with clean water, and then stop the machine. Otherwise, the material will dry and block the spiral screen gap, making it difficult to start and filter the water when starting again.

7. Maintenance and troubleshooting

8. Regularly check the lubricating oil level, replenish the lubricating oil in a timely manner, and replace the lubricating oil and bearing grease once a year.

Maintenance precautions for screw press dehydrator:

Before use, in order to ensure sufficient cleanliness inside the equipment, we use cleaning solution to clean the equipment thoroughly.

2. During the operation of the machine, excessive pressure on the equipment should be avoided, otherwise it may cause malfunctions such as screen barrel rupture.

3. During the operation of the machine, it is prohibited to throw sharp and hard objects into the body, which may damage the machine components and affect the normal operation of the machine.

When the machine needs to be stopped after the pressing is completed, it cannot be stopped directly. The pressure of the hydraulic system should be reduced first, and then the forced door should be lifted. The machine should be stopped after all material residues in the screening bucket are discharged from the forced door.

5. After using the press, the residue inside the machine should be cleaned up, and the machine should be wiped dry with a cloth before being placed.
